SKT / SKC Front Sprocket (Straight Teeth)

Front sprockets for SKT and SKC straight-tooth belts

SHIN-HO handles front sprocket selection and purchasing enquiries for SKT and SKC straight-tooth bicycle drive systems. The specification table on this page lists tooth counts, mounting interfaces and materials. Availability must be checked against the complete part number.

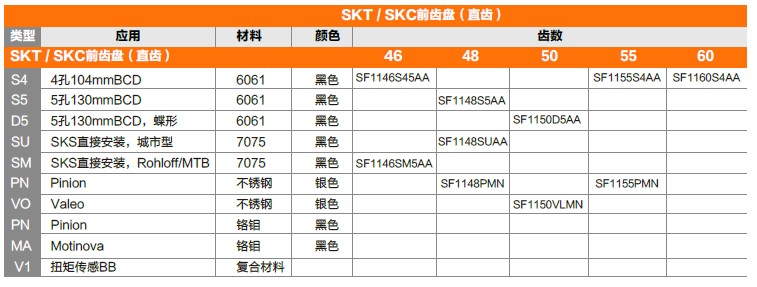

Specification table and mounting interfaces

Listed interfaces include S4 with a 4-bolt 104 mm BCD, S5 with a 5-bolt 130 mm BCD, and direct-mount options. Available tooth counts and materials differ by interface; the table does not mean every option can be freely combined.

• Provide the belt series, pitch, width and tooth count.
• Specify the front sprocket tooth count, crank or spider model, mounting holes and BCD, or a direct-mount interface drawing.

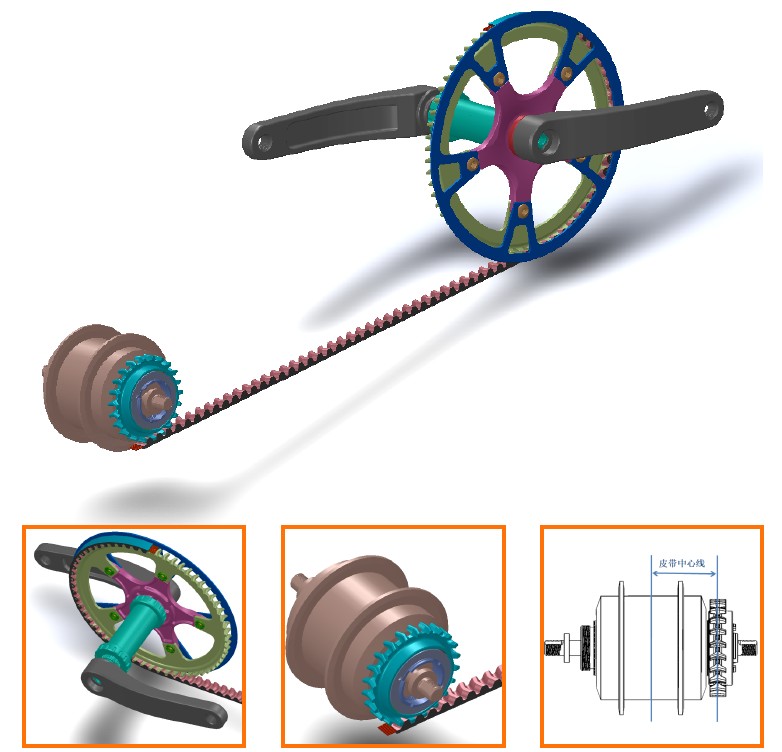

• Confirm the belt line, sprocket offset, guard requirements and frame clearance.
• Include rear sprocket, hub, centre distance and motor details.

Front sprocket samples and production enquiries

Send the listed part number or photos of the existing component, quantity and target delivery date. SHIN-HO can check supply options and pricing. Confirm the front sprocket, rear sprocket and belt together; tooth count alone is not sufficient for selection.

View SKT and SKC straight-tooth rear sprockets | SKC belts | SKT belts
